Action ChannelFlex Ultra F

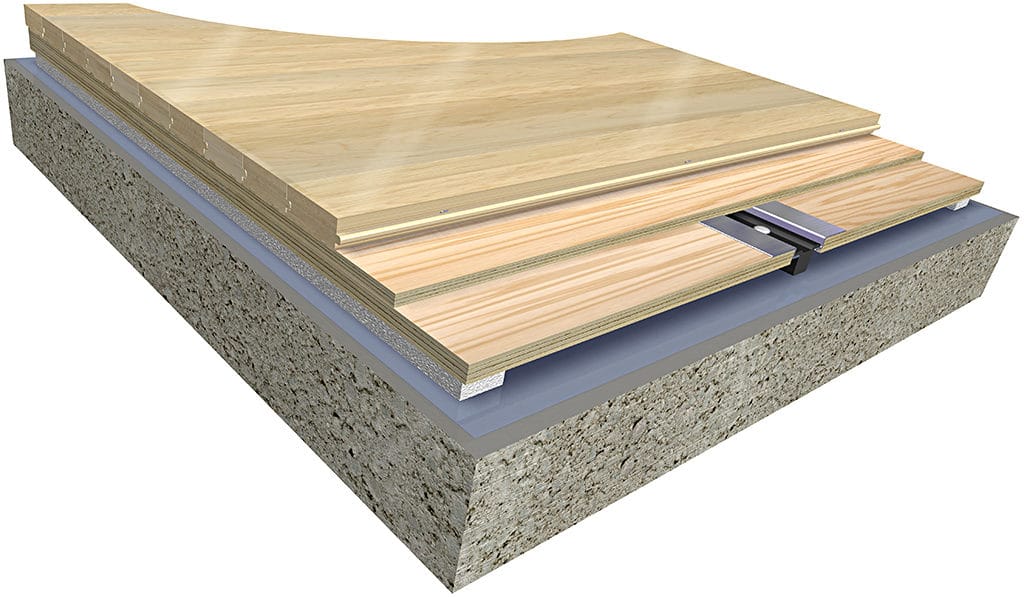

The Action Channel Flex Ultra F is an anchored resilient floor system featuring factory fabricated and machined subfloor panels with performance foam pads, continuous steel channels, and polymer anchoring T-blocks to deliver performance with system dimensional stability. This highly resilient floor system delivers uniform playability and consistent shock absorption to minimize potential injuries.

System Summary

  • System Height 2-1/8” (50mm) using 25/32” (20mm) flooring
  • Factory fabricated panels ensure accuracy and uniformity
  • Two layers of rated sheathing
  • Full length steel channel along panels
  • Recycled content T-Block anchor retainers
  • 1/2” (12mm) continuous foam pad

For specific project conditions or modifications to this specification, email us at info@actionfloors.com or call us at (800) 746-3512.

ChannelFlex Ultra F
Certifications

System Data Sheet pdf

System Specifications pdf doc

System Detailed Drawings pdf cad BIM

(Section 09 64 00) Action ChannelFlex Ultra F
Wood Athletic Flooring
